NITROGEN PLANT
The Nitrogen Plant from PSG Engineering can provide purity levels as high as 99.9995%, making it appropriate for the majority of applications. Additionally, the VPSA-based PSA Nitrogen Plant…
OXYGEN PLANT
Our best oxygen gas plant operates at a low cost while delivering excellent performance. The purpose of an air separation plant is to separate different gases from atmospheric air, such as nitrogen, argon, and oxygen…
HYDROGEN PLANT
Green hydrogen, or hydrogen generated entirely from renewable energy, has potential as a low-emission energy source in the future. Many players are starting to investigate or make large-scale…
PSG Engineering Company in Hapur
01.

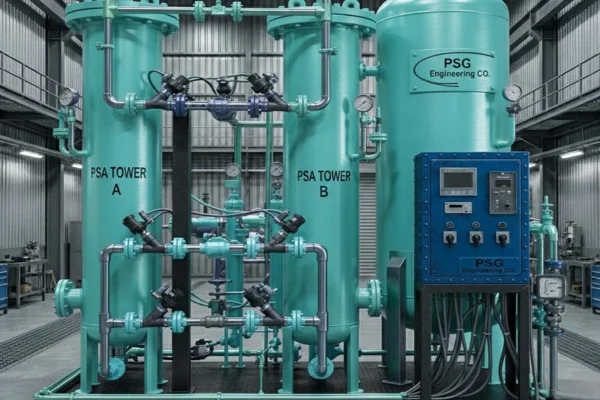

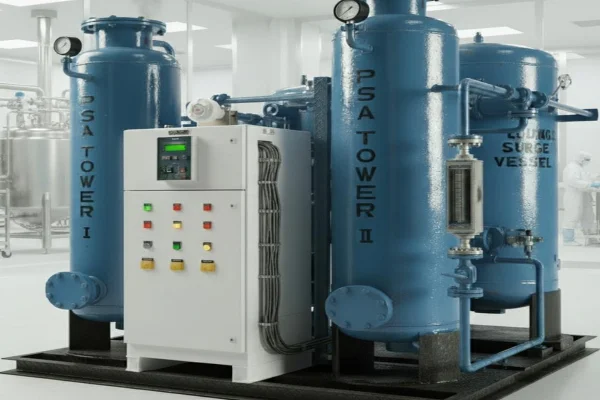

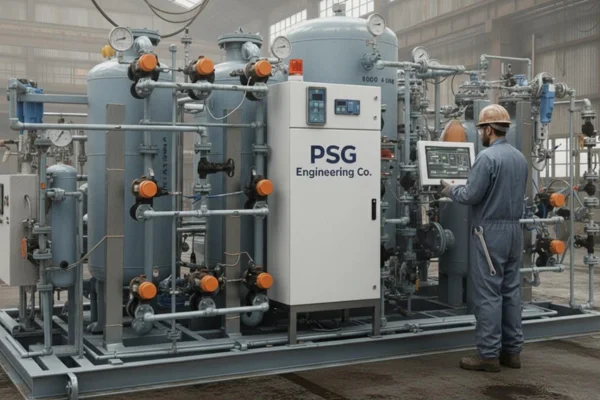

NITROGEN GAS PLANT:
This process consists of 2 beds filled with carbon Molecular Sieves (CMS). When PRE-Filtered compressed air is passed through one CMS bed, Nitrogen comes out as the product gas. The waste gas (oxygen, carbon dioxide, etc.) is discharged into the atmosphere. Upon saturation of the CMS bed, the process switches nitrogen regeneration to another bed, allowing the saturated bed to undergo regeneration by depressurization to atmospheric pressure. This ensures a continuous supply of Nitrogen to your System.
Salient Features of Nitrogen Gas Plants.
- Capacity up to 500Nm3/hr
- No fuel is required
- Purity up to 99.99% is easily achievable
- Low Capitals Coast
- Start-up time of only 10 to 15 Minutes
02.

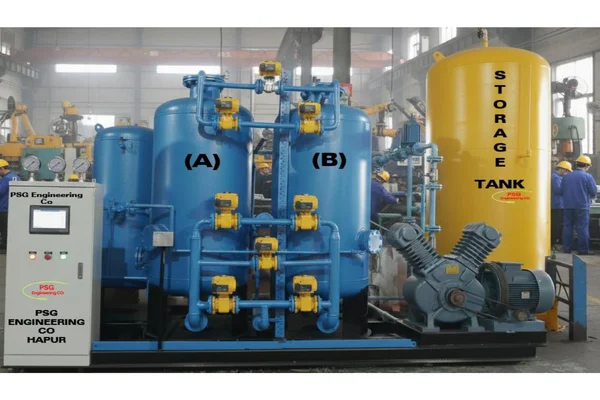

OXYGEN GAS PLANT:
PSA Principle. This Process consists of 2 Vessels filled with Molecular Sieves (MS) and Activated Alumina. Clean Compressed Air at30°C temperature is passed through one Vessel and oxygen comes out as product Gas. The exhaust Gas (Nitrogen) is discharged back into atmosphere. Upon saturation of the Molecular Sieves bed, the process switches oxygen Generation to the other bed by automatic valves while allowing the saturated bed to undergo regeneration. by depressurization and purging to atmospheric pressure. This is 2 vessels keep cycling alternately in oxygen production and regeneration ensuring oxygen Gas is continuously available to your Process.
Additional Information:–
- Minimum Order Quantity: 1 Set
- Port of Dispatch: Any Port in India
- Delivery Time: As per Order and Requirement
- Packaging Details: As per Order and Requirement
03.
HYDROGEN GAS PLANT:
Hydrogen Generation Plant work on the principle of Electrolysis. Electrolysis is the technique that is carried out for the separation of elements. Under this process, the electric current passed through the molten liquid that separates the anion and cations. Reaction involved in electrolysis of water: 2 H2O(l) → 2 H2(g) + O2(g) In the plant, the water is separated into its ionic form and H2 gas is collected and stored in the tanks. The mass ratio of hydrogen and oxygen obtained during electrolysis is 1:8. There are vital uses for hydrogen gases such as hydrogen fuel cells for producing electricity, and chemical use for producing chemicals like fertilizers, metal treatments, etc. Our company is manufacturing, exporting, and installing the Hydrogen Generation Plant at the global network.
The most effective energy carrier is hydrogen. Water is one of the many raw material sources from which hydrogen can be produced. Water electrolysis is one of many hydrogen generation techniques that produces hydrogen that is environmentally benign and of high purity. However, PEM water electrolysis was thought to be the most promising method for producing highly pure and efficient hydrogen from renewable energy sources because it emits only oxygen as a byproduct and no carbon emissions.
Explore Our New Videos
We provide complete industrial gas solutions for oxygen, nitrogen and acetylene from manufacturing, installation to starting up of gas plants at client’s site. World-class after sales service is provided for the entire life-cycle of the plants.
Quality
Quality remains our top priority and we continue to look for ways to improve our quality by taking incremental steps.
Performance Focus
Quality remains our top priority and we continue to look for ways to improve our quality by takingOur machinery performance and productivity are paramount to our and our customer's satisfaction. incremental steps
Innovation Focus
Innovation is the key to a company’s future. We spend a lot of our time in R&D, ensuring that our processes, methods, and technology all continue to evolve.
